Modular Clean Room 60mins Fireproof Sound insulation Rock Wool
Sandwich Panel Factory
Description:
Rock wool cleanroom panels are specialized building materials
designed for use in environments that require high levels of
cleanliness and controlled conditions, such as cleanrooms in
pharmaceutical, biotechnology, electronics, and food processing
industries.These panels consist of a core made from rockwool, which
is an inorganic fiber material produced by spinning molten basalt
or slag into fine fibers. The rockwool core provides excellent fire
resistance, thermal insulation, and sound absorption properties.
The rockwool core is sandwiched between two layers of metal
facings, typically galvanized steel, pre-painted steel, or
stainless steel, which provide structural integrity, durability,
and protection against environmental factors. The edges of the
panels are often sealed with aluminum or plastic extrusions to
ensure air-tightness and prevent contamination.
Parameters:
| Type | Handmade panel | Width(mm) | 100-1180mm |
| Model | HE103 | Length (as customized) | Customized |
| Name | Cleanroom rock wool sandwich panel | Weight (kg/㎡) | |
| Panel sheet material | Steel | Panel type selection | Stainless Steel;Galvanized steel |
| Panel thickness customization | 50mm;75mm;100mm | Customized thickness of steel plate (mm) | 0.376;0.426;0.476;0.526 Stainless Steel:0.5 |
| Core material | Rock wool | Steel plate brand customization | Baosteel;Lantian |
| Core material density customization(Kg/m³) | 80-120 | Color customization | Pink/green/blue/grey white |
| Fire rating | 60 minutes | Maximum number of samples per request(pieces) | 1 |
| Characteristic | Sound insulation/Fireproof/Moisture-proof/heat insulation | Sample Pack Description | Paper box |
Product advantage:
- Fire rating:60 minutes
- Sound insulation:ISO717/82&UNI18270/7 standars.
- Steel plate:Well-known big brand(Baosteel;Lantian)
- Core material,glue:The manufacturer is a listed group with good
quality.
- Supply ability:40000㎡
- Scale of company: 800 employees,6 factories,1billion sale.
Applications:
Widely used in pharmaceutical manufacturing,biotechnology,sciences,electronic
component manufacturing plants electronics factories,food
frocessing Industries,aerospace and aviation factories,medical
device production sites,cosmetics and personal care product
manufacturers
Notices:
It can be used as wall panel

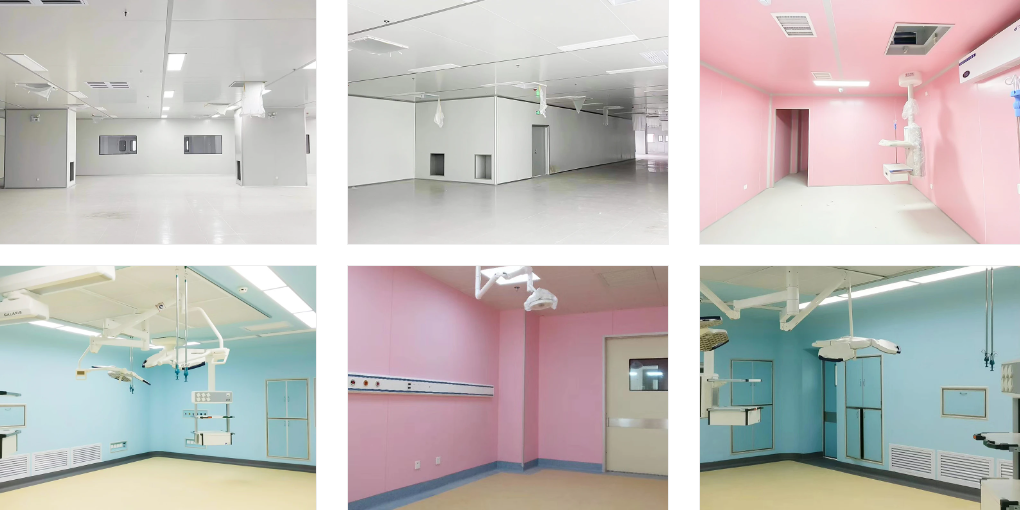

Projcet Photos:
Company Photos:
FAQS:
Q: How about your core competitiveness?
A: Our raw material suppliers are Fortune 500 companies, and we have
800 employees. Whether it is technical support or after-sales
service, we can give you a satisfactory attitude. 5 factories
nearby produce and ship nearby
We have the first automatic production line in the world. Compared
with the traditional manual production line, the production
efficiency increased by 6-8 times, leading to most competitors.
That means lower cost and higher quality.
Q: Do you have your own construction team?
A: No, but all of our cleanroom panels and connected parts are easy
for disassemble and installation due to our excellent design.
What's more, we provided the instruction and videos for
installation and we can send our professional supervisor to the
site.
Q: How many kinds of products do you have?
A: At present, we have more than 100 different products, including a
cleanroom sandwich panel cleanroom door and window,aluminum
profile,PVC flooring and cleanroom equipments.
Q: Can you provide samples? Is it free or extra?
A: Yes, we can provide samples for free, but we would appreciate it
if freight to collect.
Q: What are your terms of payment?
A: 30% T/T prepaid, 70% T/T before delivery. We can discuss payment
if we have more cooperation in the future.
